Manual Reel Counter_Mega

Manual SMD Components Counter

VIDEO

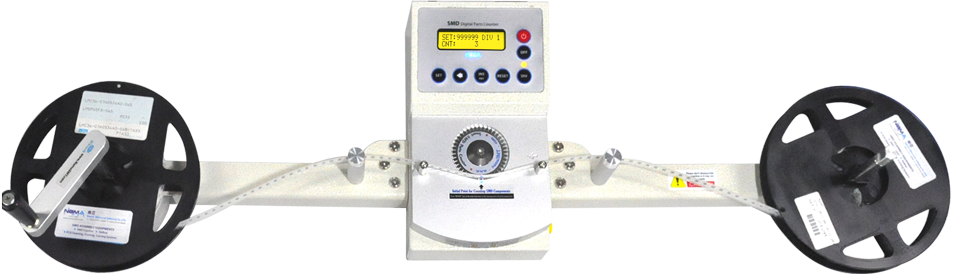

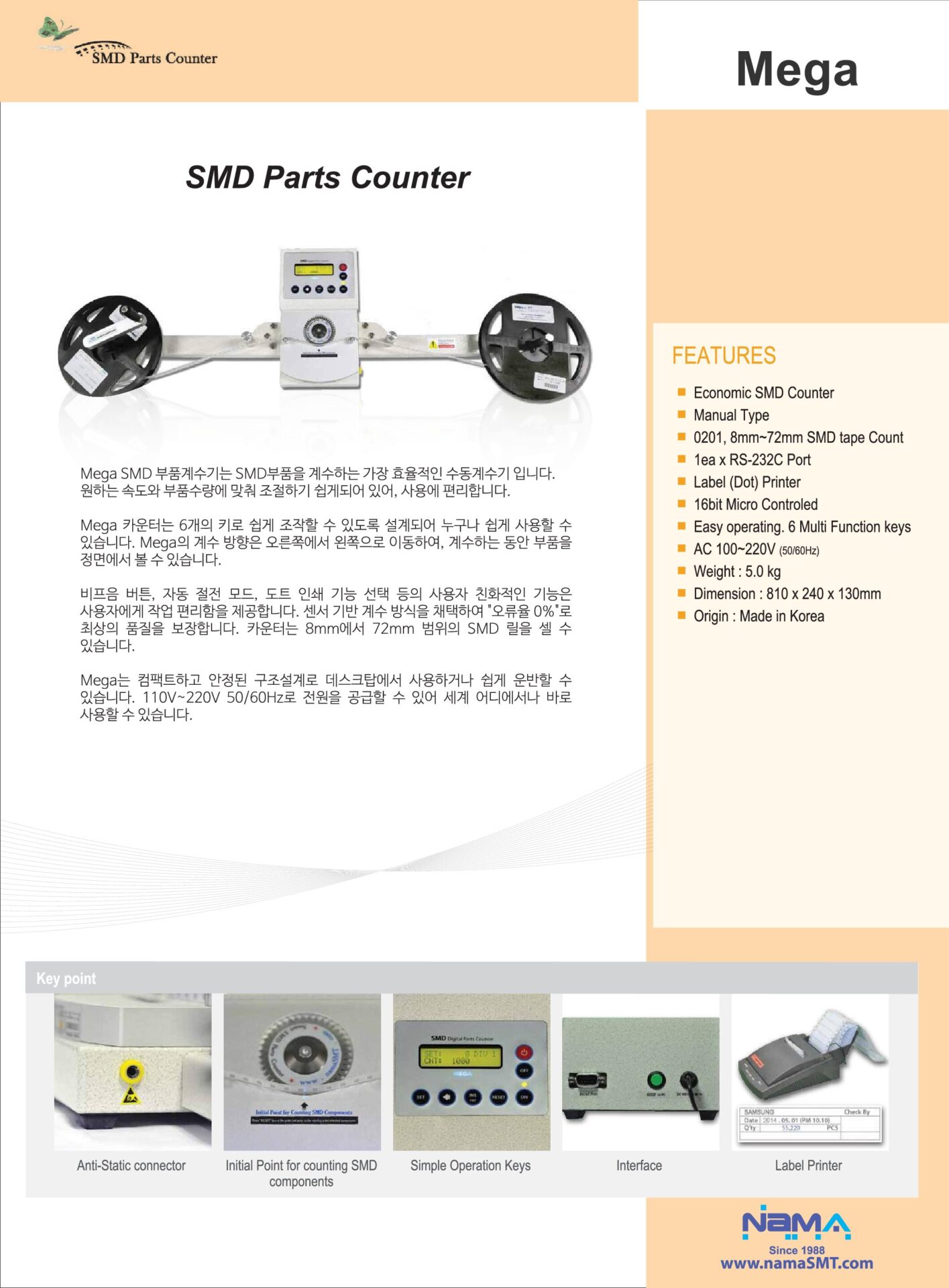

Mega Counter is a Digital Parts Counter for SMD type components and adjustable for 8~72mm chip devices. This is one-touch mode that is very easy to enumerate to everyone. We pursue “Error rate by 0%” and offer good quality of 3 year free warranty.

A Label Printer comes with the Mega :

Printing out :

1) Company nama

2) Data, Time [YY/MM/HH/MM]

3) Count Q’ty

Specification for Mega

1. Digital Micro-Controlled : Easy operating
2. 0201,1005. 8mm ~72mm all type of SMD devices available.
3. Beep signal as it finish working
4. Speed : 10,000 pcs/sec (by high Qualified custom sensor)
5. SMD Pitch Program. ( Automatic program transaction )
6. Auto Sleep Mode
7. Non-necessary arrangment for device width “One Touch Reek Clamp”
8. Label Printer : Company name/Date/Time/Qty ( built-in Clock unit )
9. Accessory : Handle for Operation
10. Dimensions : 780(L) x 230(W) x 130(H)mm

Pictures

Simple Function Key

Easy and Accrated Counting

Direction / Bi-direction Counting

Semi-permanent Aluminuim Material

Stable SMD Reel Counting

No deviation

Detachable Left/Right Arms

LED initial Mark

Starting Point / Ending Point

Pitch Guide for SMD device SET

Anti-Static Connector Plug

Tension Control

FUNCTION			Mega	Remarks
1	Digital & Micom Design		o
2	Counter Range : 0201.1005. 8mm ~ 72 mm		o
3	Counting Speed : :30 sec per 5,000 pcs		o
	SMD Pitch set Edit for user		o	Sensor cognition
	NO width adjustment for guide		o	Micom Process
	One Touch Reel Clamp		o
4	Display 16 Character 2 Line		o	Digital Control data
5	Back Light for LCD		O
6	Axial & Radial counting		X	option : Adapter
7	Label Pinter	1) Printer Port	o	9 Pin Serial port
		2) Date & Time	*	Option
		3) Company Name	*	Option
8	Power	1) Recharge Battery (7A)	*	Option
		2) Auto Power Sleep	O	no operating 10Min
		3) Switching Power	X	AC Free Power
		4) In/Out AC Connector	X	AC Our / Printer
		5) AC & DC Power Monitor LED Lamp	x	Base Front Dual
9	Pre-set Beep-signal		o
10	Preset Memory		o
11	Carrying Handle		x
12	Beep Sound for Functio Key		x
13	Packing Accessory	1) Mini Air Pump (op)	x	Sensor Cleaner
13	Packing Accessory	2) SMD tape Cutter(op)	o	Tape Cutting tool
14	Dimension	800(W) x 260(D) x 160mm(H)		Base : Aluminum
15	Weight	Approx. 6.5 Kg
16	Power	AC100V/220/50~60Hz. free power DC 6 Volt Adapter
