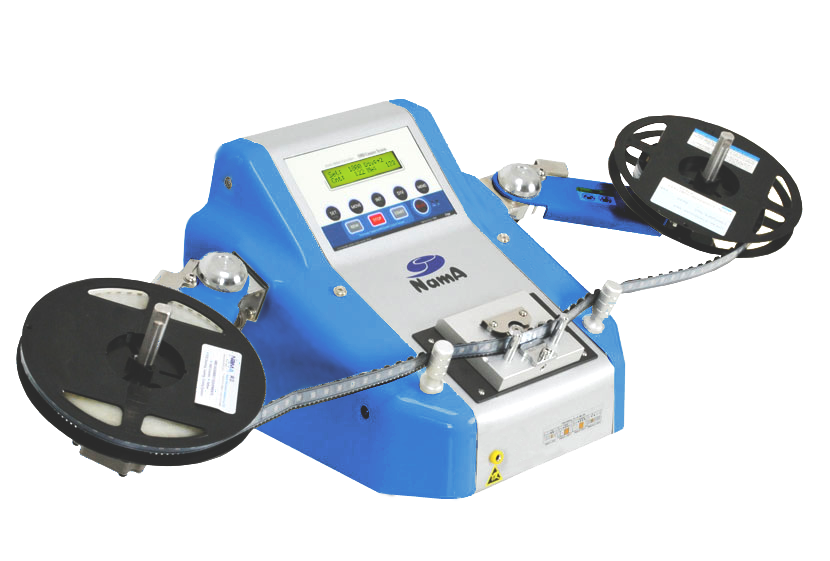

Automatic SMD Reel Counter_Giga

자동 SMD 릴카운터 Giga

SUMMARY

Giga which is multi functional economic SMD Counter system, is the most dedicated counter of NamA Electronic Industry Korea.

The automatic Giga SMD parts counter sets up and changes over fast. Count out an entire reel or a specific number of parts to prepare for your next job, and know you’ve got the right amount, thanks to the Giga’s Pocket Check and double-check features.

The operators can see the SMD tape effectively at the front of the machine.

Specially, Giga is compatible for AC110-220V free voltage through a controlled manner to use any country in the world.

Features

Pocket Check(Missing Parts-Only Giga S) feature stops counting and stop or pass depending on setting when an empty pocket is encountered.
Adjustable pocket check sensor height unlike other products adopt fixed sensor height
Stepping Motor(Semi Permanent Product) instead of AC motor which needs to be replaced periodically
3 Play modes (Short, Normal, Auto-alighment)
Built in memory allows you to preset count Q’ty
Accommodates up to 440mm diameter.
Anti-Static Connector
Multi Interface (USB Ports(op), RS-232C Ports)
Free Power Volatage(110-220V)
Auto Power Sleep Mode
Various Accessories (Lable Printer/Barcode Printer/Barcode Scanner/Data Link Adapter)

Ergonomic and Easy to Use

The design of the Giga allows the operator to keep an eye on the LCD screen and the parts as they’re being counted at the same time. The machine counts forward and back (for double-checking), or parts can be swiftly spooled back to their original reel.

Place the full reel to be counted on the right side and an empty reel on the left. Manually lead the tape through the counting gears. Rotate the temp reel till the first component is aligned with the press wheel.
Reset the counter’s digital display. If desired, enter a preset number of parts to be counted.
Set the pitch value as specified above.
Press the START key to start counting. Note: the counter increases or decreases whether it is moved by the motors or manually.
Rewind the tape back to the original reel by pressing the REWIND key. Rewinding also verifies the counting result.

No	Function	Giga	Giga S	Remark
1	Motorized Auto Counter	O	O	Adopt stepping motors
2	SMD (4mm-72mm)	O	O
3	SMD Pocket Check (Missing Parts)	X	O (8,12,16,24~48mm)	Adjustable knob control
4	Rechargeable Battery (7A)	X	X	Optional
5	Interface 1. 2 x USB Ports 2. 2 x RS232C Ports 3. I/O Port 4. USB Port at the front	X O X –	O O X X	X : Optional
6	Free Power Voltage 110-220V,50/60Hz	O	O

* We reserve the right to make changes without notice.

3 Counting Mode

Short Moving

When you press the start button shortly, the stepping motor moves shortly.

It is useful for 1~3 parts moving.

Normal Moving

If you want to count the parts till preset value, press the start button for 3 seconds.

After the machine count the parts until preset value, it will be stopped automatically.

Auto Alignment Moving

(Test or Double Check)

If you want to double-check the parts till preset value or check the machine’s performance, press the start button for 6 seconds.

After the machine count the parts until preset value, it will be rewind the reel till 0 value automatically.

Specification

Options

｜ Specification

No	Feature		Giga	Giga S
1	Type of parts counter		Motorized	Motorized
2	Count type	SMD	●	●
		Axial, Radial	X	X
		01005 inch(2mm pitch)	X	X
3	Pocket check function for SMD chips 8,12,16,24mm steps for black pocket reel		X	●
4	Memory for counting quantity		●	●
5	Count 5,000 chips per 40~50sec.		●	●
6	SMD counting direction ( ►:Left to Right , ◄:Right to Left)		◀--	◀--
7	Bidirectional counting		●	●
8	Edit company name, date, time		●	●
9	Interface	2 x RS232C Ports	●	●
9	Interface	2 x USB Ports	▲	▲
10	Keylight mode on the key pad		●	●
11	Set SMD pitch (4~80mm with 20steps)		●	●
12	Automatic power sleep mode. (20min)		●	●
13	Adjust beep sound		●	●
14	Adjust LCD contrast		●	●
15	Anti-static connector		●	●
16	100~220V, 50/60Hz Free Power		●	●
17	Standard Accessory		1) AC power cable 2) 6 angle screw driver 3)Operation Manual USB
18	Option	1. Dot Printer (label)	●	●
		2. Barcode Printer	●	●
		3. Barcode Scanner	●	●
		4. Data Link Adapter	●	●
19	Weight (kg)		8.8 kg	9.0 kg
20	Weight for carton box (kg)		11.3 kg	11.5 kg
21	Dimensions ( W x D x H )		430 x 300 x 200 mm
22	Dimensions for carton box ( W x D x H )		450 x 360 x 280 mm

* Product specifications and features are subject to change without notice.

｜ Balance Table

No	Function	Magic e	Giga	Other Company	Remark
1	Motorized type	DC Stepping		AC Motor
2	Motor power	DC 12V (Input AC free voltage)		AC 110V or 220V
3	Pocket check detect	O	X	O
4	Adjust height	8,12,16,24mm step knob and delicately adjust possibility		8mm
5	SMD, Axial, Radial count	O	X	X
6	Printer type	Barcode or Dot Printer		Barcode	Self Edit company name from customer
7	Barcode hand scanner	O		O	No need power
8	Last counting memory mode	O		X
9	PC Connecting for ERP,Excel	O		X	all programs
10	Automatic alignment mode	O		X
11	Interface port	2 x RS-232C, 2 x USB I/O Data Port		RS-232C
12	Automatic power sleep mode	60min	20min	X
13	Origin	Made in Korea		Made in China

Data link Adapter ( ERP . MS Excel. other data interface )

- Dot or Barcode Printer_ Date, Time, Q'ty printing at the label
- Barcode Scanner_ Scan the quantity barcode to input the preset value on the counter.
- Data link_ Data Link adapter compatible with various programs such as ERP systems and MS Excel on PCs
- 01005 2mm Adapter _ Adapter capable of counting 01005 components with a 2mm pitch.
(for only Magic e model)
